XTP

PropertiesImage

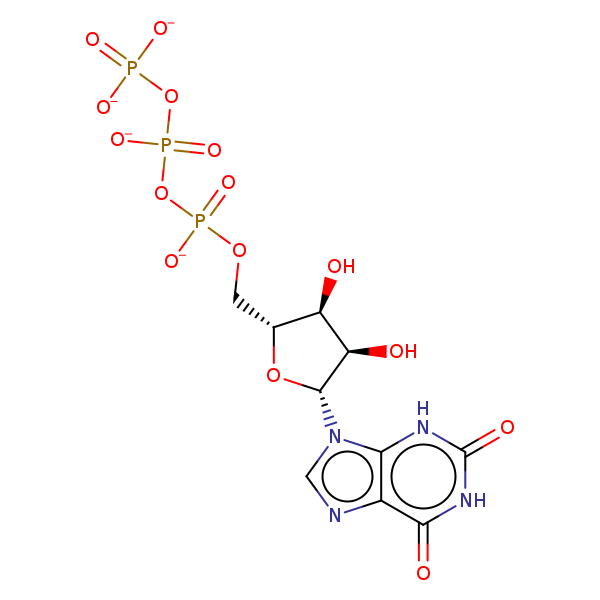

MNX_IDMNXM1102152 Image of MNXM1102152
referencechebi:61314
formulaC10H11N4O15P3
global charge-4
mol weight520.133
InChIKeyCAEFEWVYEZABLA-UUOKFMHZSA-J
InChIInChI=1S/C10H15N4O15P3/c15-5-3(1-26-31(22,23)29-32(24,25)28-30(19,20)21)27-9(6(5)16)14-2-11-4-7(14)12-10(18)13-8(4)17/h2-3,5-6,9,15-16H,1H2,(H,22,23)(H,24,25)(H2,19,20,21)(H2,12,13,17,18)/p-4/t3-,5-,6-,9-/m1/s1
SMILESO=C1NC(=O)C2=C(N1)N([C@@H]1O[C@H](COP(=O)([O-])OP(=O)([O-])OP(=O)([O-])[O-])[C@@H](O)[C@H]1O)C=N2
MNX internals
InChI (mnx)InChI=1/C10H15N4O15P3/c15-5-3(1-26-31(22,23)29-32(24,25)28-30(19,20)21)27-9(6(5)16)14-2-11-4-7(14)12-10(18)13-8(4)17/h2-3,5-6,9,15-16H,1H2,(H,22,23)(H,24,25)(H2,19,20,21)(H2,12,13,17,18)/t3-,5-,6-,9-/m1/s1 Image of MNXM1102152
SMILES (mnx)[CH2:1]([C@@H:3]1[C@@H:5]([OH:15])[C@@H:6]([OH:16])[C@H:9]([N:14]2[CH:2]=[N:11][C:4]3=[C:7]2[N:12]=[C:10]([OH:18])[N:13]=[C:8]3[OH:17])[O:27]1)[O:26][P:31]([OH:22])(=[O:23])[O:29][P:32]([OH:24])(=[O:25])[O:28][P:30]([OH:19])([OH:20])=[O:21]
Parent-child relations graph
Occurences in reactions#reac
in my sandbox 0
in MNXref (generic)8
in models (compartimentalized) 7
Similar chemical compounds in external resources
IdentifierDescription

reactome:R-ALL-2509848
reactomeM:R-ALL-2509848
CHEBI:61314
chebi:61314
CAEFEWVYEZABLA-UUOKFMHZSA-J 		XTP
XTP tetraanion
XTP(4-)
xanthosine 5' triphosphate (4-)

bigg.metabolite:xtp
biggM:xtp
sabiork.compound:1876
sabiorkM:1876
CAEFEWVYEZABLA-UUOKFMHZSA-J
CAEFEWVYEZABLA-UUOKFMHZSA-N 		XTP

CHEBI:59885
chebi:59885
CAEFEWVYEZABLA-UUOKFMHZSA-K 		XTP(3-)
5'-OO-[({[(hydroxyphosphinato)oxy]phosphinato}oxy)phosphinato]xanthosine
XTP trianion
xanthosine 5' triphosphate(3-)
xanthosine 5'-triphosphate(3-)

vmhM:xtp
vmhmetabolite:xtp
CAEFEWVYEZABLA-UUOKFMHZSA-J 		XTP
({[({[(2R,3S,4R,5R)-5-(2,6-dihydroxy-9H-purin-9-yl)-3,4-dihydroxyoxolan-2-yl]methoxy}(hydroxy)phosphoryl)oxy](hydroxy)phosphoryl}oxy)phosphonic acid

CHEBI:10049
chebi:10049
CAEFEWVYEZABLA-UUOKFMHZSA-N 		XTP
O(5')-(tetrahydroxytriphosphoryl)xanthosine
Xanthosine 5'-triphosphate
Xanthosine triphosphate
triphopsphoric acid 1-xanthosin-5'-yl ester
xanthosine 5'-(tetrahydrogen triphosphate)

kegg.compound:C00700
keggC:C00700
CAEFEWVYEZABLA-UUOKFMHZSA-N 		XTP
Xanthosine 5'-triphosphate

seed.compound:cpd00530
seedM:cpd00530
CAEFEWVYEZABLA-UUOKFMHZSA-K 		XTP
Xanthosine 5'-triphosphate
xanthosine 5' triphosphate
xtp

metacyc.compound:XTP
metacycM:XTP
CAEFEWVYEZABLA-UUOKFMHZSA-J 		XTP
xanthosine 5' triphosphate
hmdb:HMDB0000293
CAEFEWVYEZABLA-UUOKFMHZSA-N 		Xanthosine 5-triphosphate
({[({[(2R,3S,4R,5R)-5-(2,6-dihydroxy-9H-purin-9-yl)-3,4-dihydroxyoxolan-2-yl]methoxy}(hydroxy)phosphoryl)oxy](hydroxy)phosphoryl}oxy)phosphonic acid
5'-XTP
O(5')-(Tetrahydroxytriphosphoryl)xanthosine
Triphopsphate 1-xanthosin-5'-yl ester
Triphopsphic acid 1-xanthosin-5'-yl ester
Triphopsphoric acid 1-xanthosin-5'-yl ester
XTP
Xanthosine 5'-triphosphate
Xanthosine 5'-triphosphate 2Sodium salt
Xanthosine 5'-triphosphoric acid
Xanthosine 5-triphosphoric acid
Xanthosine mono(tetrahydrogen triphosphate)
Xanthosine triphosphate
Xanthosine triphosphoric acid
xanthosine 5-triphosphate

hmdb:HMDB00293
biggM:M_xtp
keggC:M_C00700
seedM:M_cpd00530
vmhM:M_xtp 		secondary/obsolete/fantasy identifier
