Undecaprenyl-diphospho-N-acetylmuramoyl-(N-acetylglucosamine)-L-alanyl-gamma-D-glutamyl-L-lysyl-(L-alanyl-L-alanyl)-D-alanyl-D-alanine

MNXM13229 is deprecated and here replaced by MNXM1367595
!!! Alternative mappings exist !!!
PropertiesImage

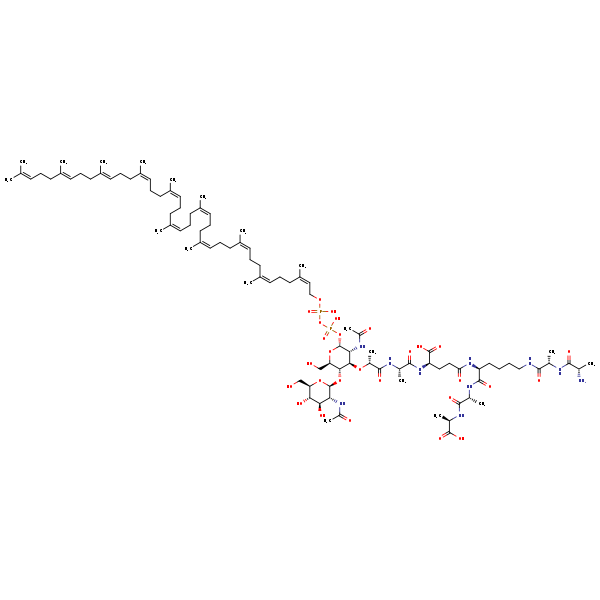

MNX_IDMNXM1367595 Image of MNXM1367595
referencechebi:81176
formulaC100H166N10O28P2
global charge0
mol weight2018.418
InChIKeyUHVZHKZFXLAOQF-BMLJGQHCSA-N
InChIInChI=1S/C100H166N10O28P2/c1-61(2)33-23-34-62(3)35-24-36-63(4)37-25-38-64(5)39-26-40-65(6)41-27-42-66(7)43-28-44-67(8)45-29-46-68(9)47-30-48-69(10)49-31-50-70(11)51-32-52-71(12)56-58-132-139(128,129)138-140(130,131)137-100-86(108-79(20)114)90(89(83(60-112)135-100)136-99-85(107-78(19)113)88(117)87(116)82(59-111)134-99)133-77(18)95(122)104-75(16)94(121)110-81(98(126)127)54-55-84(115)109-80(96(123)105-74(15)93(120)106-76(17)97(124)125)53-21-22-57-102-92(119)73(14)103-91(118)72(13)101/h33,35,37,39,41,43,45,47,49,51,56,72-77,80-83,85-90,99-100,111-112,116-117H,21-32,34,36,38,40,42,44,46,48,50,52-55,57-60,101H2,1-20H3,(H,102,119)(H,103,118)(H,104,122)(H,105,123)(H,106,120)(H,107,113)(H,108,114)(H,109,115)(H,110,121)(H,124,125)(H,126,127)(H,128,129)(H,130,131)/b62-35+,63-37+,64-39-,65-41-,66-43-,67-45-,68-47-,69-49-,70-51-,71-56-/t72-,73-,74+,75-,76+,77+,80-,81+,82+,83+,85+,86+,87+,88+,89+,90+,99-,100+/m0/s1
SMILESCC(=O)N[C@H]1[C@H](O[C@H]2[C@H](O[C@H](C)C(=O)N[C@@H](C)C(=O)N[C@H](CCC(=O)N[C@@H](CCCCNC(=O)[C@H](C)NC(=O)[C@H](C)N)C(=O)N[C@H](C)C(=O)N[C@H](C)C(=O)O)C(=O)O)[C@@H](NC(C)=O)[C@@H](OP(=O)(O)OP(=O)(O)OC/C=C(/C)CC/C=C(/C)CC/C=C(/C)CC/C=C(/C)CC/C=C(/C)CC/C=C(/C)CC/C=C(/C)CC/C=C(/C)CC/C=C(\C)CC/C=C(\C)CCC=C(C)C)O[C@@H]2CO)O[C@H](CO)[C@@H](O)[C@@H]1O
MNX internals
InChI (mnx)InChI=1/C100H166N10O28P2/c1-61(2)33-23-34-62(3)35-24-36-63(4)37-25-38-64(5)39-26-40-65(6)41-27-42-66(7)43-28-44-67(8)45-29-46-68(9)47-30-48-69(10)49-31-50-70(11)51-32-52-71(12)56-58-132-139(128,129)138-140(130,131)137-100-86(108-79(20)114)90(89(83(60-112)135-100)136-99-85(107-78(19)113)88(117)87(116)82(59-111)134-99)133-77(18)95(122)104-75(16)94(121)110-81(98(126)127)54-55-84(115)109-80(96(123)105-74(15)93(120)106-76(17)97(124)125)53-21-22-57-102-92(119)73(14)103-91(118)72(13)101/h33,35,37,39,41,43,45,47,49,51,56,72-77,80-83,85-90,99-100,111-112,116-117H,21-32,34,36,38,40,42,44,46,48,50,52-55,57-60,101H2,1-20H3,(H,102,119)(H,103,118)(H,104,122)(H,105,123)(H,106,120)(H,107,113)(H,108,114)(H,109,115)(H,110,121)(H,124,125)(H,126,127)(H,128,129)(H,130,131)/b62-35+,63-37+,64-39-,65-41-,66-43-,67-45-,68-47-,69-49-,70-51-,71-56-/t72-,73-,74+,75-,76+,77+,80-,81+,82+,83+,85+,86+,87+,88+,89+,90+,99-,100+/m0/s1 Image of MNXM1367595
SMILES (mnx)[CH3:1][C:61]([CH3:2])=[CH:33][CH2:23][CH2:34]/[C:62]([CH3:3])=[CH:35]/[CH2:24][CH2:36]/[C:63]([CH3:4])=[CH:37]/[CH2:25][CH2:38]/[C:64]([CH3:5])=[CH:39]\[CH2:26][CH2:40]/[C:65]([CH3:6])=[CH:41]\[CH2:27][CH2:42]/[C:66]([CH3:7])=[CH:43]\[CH2:28][CH2:44]/[C:67]([CH3:8])=[CH:45]\[CH2:29][CH2:46]/[C:68]([CH3:9])=[CH:47]\[CH2:30][CH2:48]/[C:69]([CH3:10])=[CH:49]\[CH2:31][CH2:50]/[C:70]([CH3:11])=[CH:51]\[CH2:32][CH2:52]/[C:71]([CH3:12])=[CH:56]\[CH2:58][O:132][P:139]([OH:128])(=[O:129])[O:138][P:140]([OH:130])(=[O:131])[O:137][C@@H:100]1[C@H:86]([N:108]=[C:79]([CH3:20])[OH:114])[C@@H:90]([O:133][C@H:77]([CH3:18])[C:95](=[N:104][C@@H:75]([CH3:16])[C:94](=[N:110][C@H:81]([CH2:54][CH2:55][C:84](=[N:109][C@@H:80]([CH2:53][CH2:21][CH2:22][CH2:57][N:102]=[C:92]([C@H:73]([CH3:14])[N:103]=[C:91]([C@H:72]([CH3:13])[NH2:101])[OH:118])[OH:119])[C:96](=[N:105][C@H:74]([CH3:15])[C:93](=[N:106][C@H:76]([CH3:17])[C:97](=[O:124])[OH:125])[OH:120])[OH:123])[OH:115])[C:98](=[O:126])[OH:127])[OH:121])[OH:122])[C@H:89]([O:136][C@H:99]2[C@H:85]([N:107]=[C:78]([CH3:19])[OH:113])[C@@H:88]([OH:117])[C@H:87]([OH:116])[C@@H:82]([CH2:59][OH:111])[O:134]2)[C@@H:83]([CH2:60][OH:112])[O:135]1
Parent-child relations graph
Occurences in reactions#reac
in my sandbox 0
in MNXref (generic)1
in models (compartimentalized) 0
Similar chemical compounds in external resources
IdentifierDescription

CHEBI:81176
chebi:81176
kegg.compound:C17549
keggC:C17549
UHVZHKZFXLAOQF-BMLJGQHCSA-N
Undecaprenyl-diphospho-N-acetylmuramoyl-(N-acetylglucosamine)-L-alanyl-gamma-D-glutamyl-L-lysyl-(L-alanyl-L-alanyl)-D-alanyl-D-alanine

keggC:M_C17549
secondary/obsolete/fantasy identifier
